• ASCO Hot Water And Steam Valve 8267G015 120/60AC

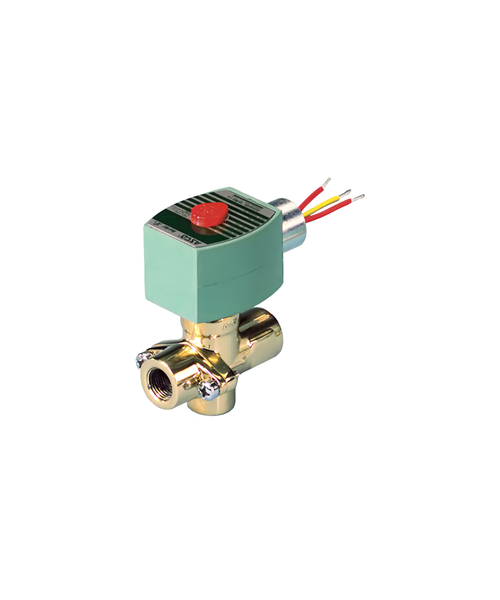

ASCO Hot Water And Steam Valve 8267G015 120/60AC

$376.00 $315.84315.84USD
Are you buying in volume? Are you an OEM? Are you a reseller? Be sure to contact FLW directly for your special pricing.
Quantity:
Availability:
PART NUMBER:
8267G015 120/60AC
Shipping Weight:
2.00 LBS
Shipping:
Calculated at checkout

Description

The ASCO 8267 Series are 2-way, normally open or normally closed direct acting solenoid valves. These valves are designed for steam service. The guillotine-tpe disc provides straight through flow, minimizing pressure drop and turbulence through the valve.

Series 8267 valves may be provided with general purpose, raintight/explosionproof or raintight/watertight/explosionproof solenoid enclosure.

Special Features:

  • Hot water service to 210 psi differential @ 210°F; Steam service to 125 psi differential @ 353°F
  • Specify these valves for the high-temperature applications found in laundries, molding, steam atomization, sterilizers, autoclaves, and many others

Product Specifications

Product Specifications

AC/DC:AC
Inlet Pipe Size (NPT):1/2 in
Orifice Size:3/8 in
Coil Class:HT
Body Material:Brass
Cv/Kv (Pressure Port):4.50 Cv - 3.89 Kv
Max Ambient Temperature:125 F - 52 C
Max Fluid Temperature:250 F - 121 C
Min Ambient Temperature:32 F - 0 C
Min Fluid Temperature:32 F - 0 C
Watt Rating 60 Hz:16.10 W
