• AI-Tek Passive Speed Sensor 70085-1010-227

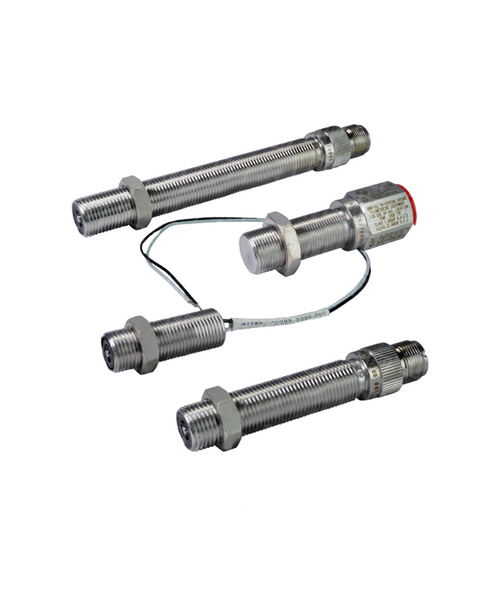

AI-Tek Instruments 70085-1010-227 Passive Speed Sensor

$195.00 $185.25185.25USD
Are you buying in volume? Are you an OEM? Are you a reseller? Be sure to contact FLW directly for your special pricing.
Shipping Weight:
1.00 LBS
Calculated at checkout


AI-Tek 70085-1010-227 variable reluctance sensors are essential for control and protection circuits. Passive magnetic speed sensors can provide a signal from the inside of an aircraft engine at temperatures approaching 425° C or from the hub of an automobile wheel at high shock and vibration.

Advantages of these sensors include:
  • Great reliability
  • Easy installation
  • No moving parts or contacts resulting in a long lasting sensor
  • Self-powered operation
  • Large assortment of shapes and sizes
  • Simple alignment
  • Sensor can be designed for almost any environment

Due to their flexibility, you will find AI-Tek variable reluctance sensors in everything from low-cost consumer products to highly-accurate automotive engine ignition systems to flight-worthy aircraft engine controls.

Product Specifications

Thread Length:1.687 in (42.85 mm)
Sensor Length:2.00 in (50.8 mm)
Output Voltage(Standard):4.7 V (P-P)
Output Voltage (Guarantee Point): 0.4 V (P-P)
DC Resistance: 125 ohms max.
Operating Temperature:-73 to +232°C
