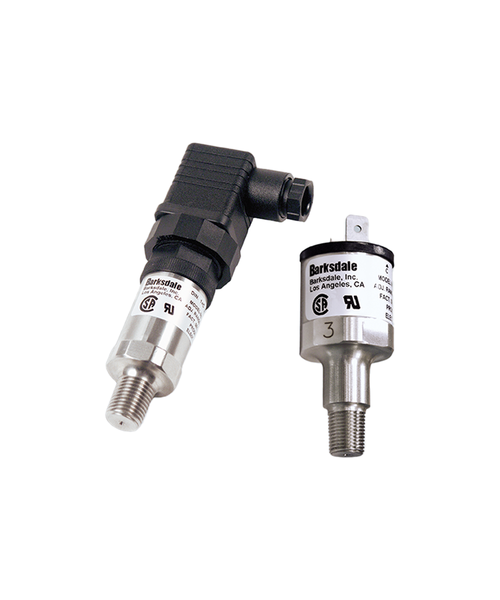

• Barksdale Series 7000 Compact Pressure Switch 55 PSI Falling Factory Preset 733S-13-2V-55F

Barksdale Series 7000 Compact Pressure Switch 55 PSI Falling Factory Preset 733S-13-2V-55F

$322.00 $289.80
Are you buying in volume? Are you an OEM? Are you a reseller? Be sure to contact FLW directly for your special pricing.
Quantity:
Availability:
PART NUMBER:
733S-13-2V-55F
Shipping Weight:
1.00 LBS
Shipping:

FREE Ground Shipping

Description

The Series 7000 Pressure Switch delivers powerful performance in a compact, economical package. Available in stainless steel or brass, this switch measures, controls and switches pressures up to 3000 psi. A snap action micro-switch eliminates the inconsistent operation of floating contacts found in similar designs. This UL Recognized and CSA listed switch can be used for high or low pressure control, safety shutdown and alarm functions for most industrial equipment applications. When the application is critical and space is limited, the Series 7000 is the switch to choose.

Features:
  • Compact size
  • Multiple electrical connections
  • SPDT snap action micro-switch
  • NEMA 1 or 4 (depending on electrical connection)
  • Factory preset or field adjustable
  • Available in stainless steel or brass

Applications:
  • Air proving in HVAC systems
  • Engine monitoring
  • Hydraulic power units
  • Mobile hydraulics
  • Pump or compressor control
  • Hydraulic and pneumatic braking systems


Factory preset setpoint options are available. Contact FLW for further information.

Product Specifications

General Specifications

Accuracy:± 8%
Electrical Connection:Free leads. 18 gauge, 18" long (NEMA 1)
Process Connection:1/4" NPTM
Switch
Type:Field adjustable with factory pre-set
SPDT, snap-action switch
Rating:5 amps @ 125/250 VAC (silver contacts)
Fitting Material:300 series stainless steel
Wetted Material:Viton® Diaphragm
Diaphragm Type:300 Series Stainless Steel Fitting
Options
Setpoint:55 PSI Falling
