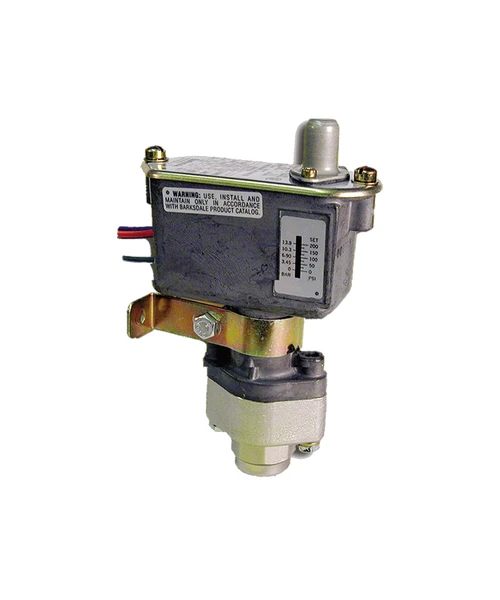

Barksdale Series C9612 Sealed Piston Pressure Switch, Housed, Single Setpoint, 250 to 3000 PSI, TC9612-3-V-CS

Name: Barksdale Series C9612 Sealed Piston Pressure Switch, Housed, Single Setpoint, 250 to 3000 PSI, TC9612-3-V-CS
Brand: Barksdale
SKU: TC9612-3-V-CS
Price: 595.8 USD
Availability: InStock

$662.00

$595.80

Are you buying in volume? Are you an OEM? Are you a reseller? Be sure to contact FLW directly for your special pricing.

Quantity:

Availability:

This item is currently out of stock.
Contact FLW for current availability

PART NUMBER:

TC9612-3-V-CS

SHIPPING WEIGHT:

4.00 LBS

SHIPPING:

FREE Ground Shipping

All orders outside the United States must be placed directly with an FLW product specialist. Click for contact details.

Adding to cart… The item has been added

Description

Barksdale's Series TC9612 and TC9622 Sealed Piston Pressure Switches offer extremely long life in a robust package, making them the ideal solution to your industrial pressure control needs. Sealed Piston switches are ideal for applications demanding rapid cycling.

Available in various pressure ranges from 15 to 3000 psi, sealed piston switches are suitable for use in industrial applications such as hydraulic presses, compactors, and machine tools. All models feature a durable, anodized aluminum enclosure with a tamper proof adjustment screw cover and an integrated 27/32" hole for 1/2" NPT conduit connector, and are rated to NEMA 3 as a standard. Optional terminal boxes allow for ease of electrical connection, and switches are available in both single and dual circuit configurations.

For applications requiring a highly accurate switch in a durable package, Barksdale's Series TC9612 and TC9622 Sealed Piston Pressure Switches are the ideal choice

Features:

Extremely long life
Weather resistant housing
Easy setpoint adjustment
High reliability
High proof pressure
Single & dual setpoint

Applications:

Compactors & balers
Machine tools
Lubrication equipment
Hydraulic presses
Railroad
Hydraulic power units
Compressors
Utility & power generation
Metal working application

Factory preset setpoint options are available. Contact FLW for further information.

Product Specifications

General Specifications

Accuracy:	± 2% of the adjustable range
Electrical Connectors:	JIC junction box with terminal strip
Pressure Connection:	1/4" - 18 NPT female

Adjustable Range

Decreasing - psi (bar)		Increasing - psi (bar)
min	max	min	max
250 (17.0)	2650 (180.3)	280 (19.0)	3000 (204.1)

Switch

Type:	SPDT snap action Single Setpoint
Rating:	10 amps @ 125/250/480 VAC; 0.03 amps @ 250 VDC

Wetted Parts

O-ring:	Viton® O-ring
Process Fitting:	Nickel plated aluminum
Piston:	416 stainless steel
Enclosure:	Anodized aluminum

Options

CSA Approval
