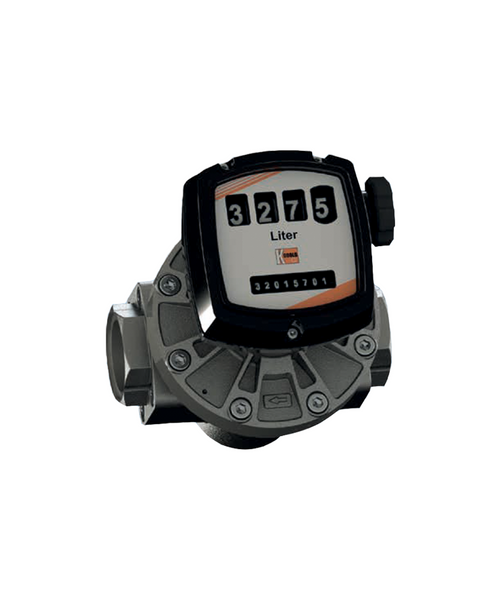

Description Specifications Literature Description The KOBOLD DON Oval gear flowmeters are categorized as positive displacement flow technology. When liquid flows through this type of positive displacement flowmeter, two oval geared rotors measure a constant volume per rotation within a precisely machined measuring chamber. With each rotation, a constant volume of liquid is measured. The rotation of the oval gears is sensed via magnets embedded within the rotors. These magnets transmit a high resolution pulse output. The output signal can be processed externally via a remote display controller or PLC or via a variety of output/display options available as accessories attached to the flowmeters. Liquid travels around the crescent shaped chambers created by the rotational movement of the rotors. The positive displacement flow technology allows for precise flow measurement of most clean liquids regardless of the media's conductivity. Other liquid properties also have a minimal effect on the performance of this type of meter. Flow profile conditioning is not required, as with alternative flow technology options, making oval gear installations simple to install in tight spaces and at a economical price. Aluminum body meters are compatible with fuels, fuel oils, & other lubricating liquids. In addition to lubricating media, stainless steel flowmeters are suitable for most products and chemicals. Features Measuring Range: 0.13 - 9.5 GPH to 40 - 660 GPM Viscosity Range: up to 1000 cP (Higher upon Request) Accuracy: ± 0.2% - 1% of Reading Material: Aluminum or Stainless Steel Pmax: 1450 PSI; Tmax: 300 °F Pulse Output, LCD Display, 4-20 mA, Alarms, Mechanical Totalizer Areas of Application Suitable for viscous, non abrasive, clean liquids like: Petroleum Fuels Oil Ink Chemicals Pastes Grease State of California Proposition 65 WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov. Product Specifications Connection⅛" NPTFlow Range 0.13-9.5 GPHReed Switch (Hx)10107Hall Sensor (Hx)10107Hall Sensor (Bx)-Quadrature-Hall Sensor (Dx)10107Hall Sensor, High-Resolution (Gx)42851Electrical Protection20214 Literature & Docs Data Sheet Manual Accessories
