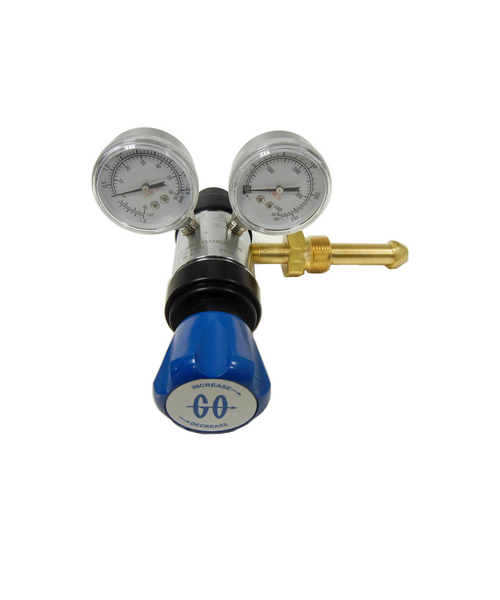

Description Specifications Literature Description The CYL-2 Series is a precision two-stage regulator well suited for instrumentation applications requiring a precise and stable pressure source. This pressure regulator was developed to meet the needs of the instrumentation industry, but is also well suited for other applications requiring precision pressure supply.The development of this series provides the maximum flexibility that is available in any cylinder regulator. Features and Specifications Brass construction 1st stage integral 20 micron filter and 2nd stage integral 40 micron filter PTFE-lined Stainless Steel diaphragm in both stages Tefzel® seats are standard 2" diameter brass gauges CGA inlet fitting Stainless Steel caps Optional relief valves and shut off valves Maximum inlet pressure: 3600 PSIG Outlet pressure ranges: 0-10 PSIG, 0-25 PSIG, 0-50 PSIG, 0-100 PSIG, 0-250 PSIG and 0-500 PSIG Fluid media; non-corrosive gases Cv flow coefficients: 0.06, 0.025, 0.20, 0.50 Operating temperatures: -40° F to +175° F (-40° C to +80° C) ¼" FNPT inlet/outlet connections standard State of California Proposition 65 WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov. Product Specifications Body Material316L Stainless SteelPort ConfigurationKProcess Port Type¼" FNPT (¼" FNPT gauge ports)Output Range0-50 PSIGDiaphragm Type, 1st StageStandard diaphragmDiaphragm Type, 2nd StageStandard diaphragmCap Assembly, 1st StageTamper proof, Standard, Stainless SteelCap Assembly, 2nd StageStandard, Stainless SteelCGA FittingOmit CGAGaugesOmit gauges1st Stage Seat MaterialTefzel1st Stage Cv Flow0.062nd Stage Seat MaterialTefzel2nd Stage Cv Flow0.06 Literature & Docs Accessories
