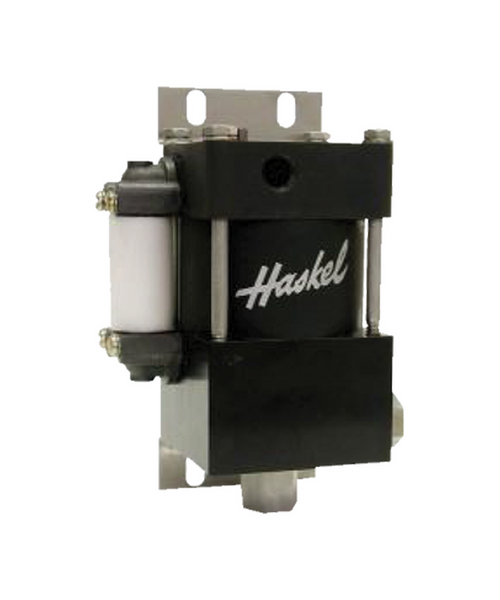

Haskel Air Pressure Amplifier HAA31-2.5-N

Haskel

Haskel Air Pressure Amplifier HAA31-2.5-N

$776.00

Are you buying in volume? Are you an OEM? Are you a reseller? Be sure to contact FLW directly for your special pricing.

Quantity:

Availability:

PART NUMBER:

HAA31-2.5-N

Shipping Weight:

5.00 LBS

Shipping:

FREE Ground Shipping

All orders outside the United States must be placed directly with an FLW product specialist. Click for contact details.

Description

Haskel HAA31-2.5-N single acting, single stage air pressure amplifier offers the most comprehensive range in the industry combining simple principles of operation with rugged constrction suitable for the most demanding industrial applications.

Features

Long seal life and easy maintenance
No heat, flame or spark risk
Wide range of models, controls and options
No air line lubrication required eliminating oily exhaust
Infinitely variable outlet pressure and flow capability
Wide range of standard and custom systems
Control of maximum pressure by means of inexpensive air drive pressure regulators

Product Specifications

Drive Size in (mm)	2.87 (73)
Max Air Drive PSIG (Bar)	125 (9)
Ratio	2.5:1
Max Inlet PSIG (Bar)	125 (9)
Max Outlet PSIG (Bar)	320 (22)
Displ/Cycle In³ (nL)	2.40 (39.3)

Literature & Docs

Product Manual
